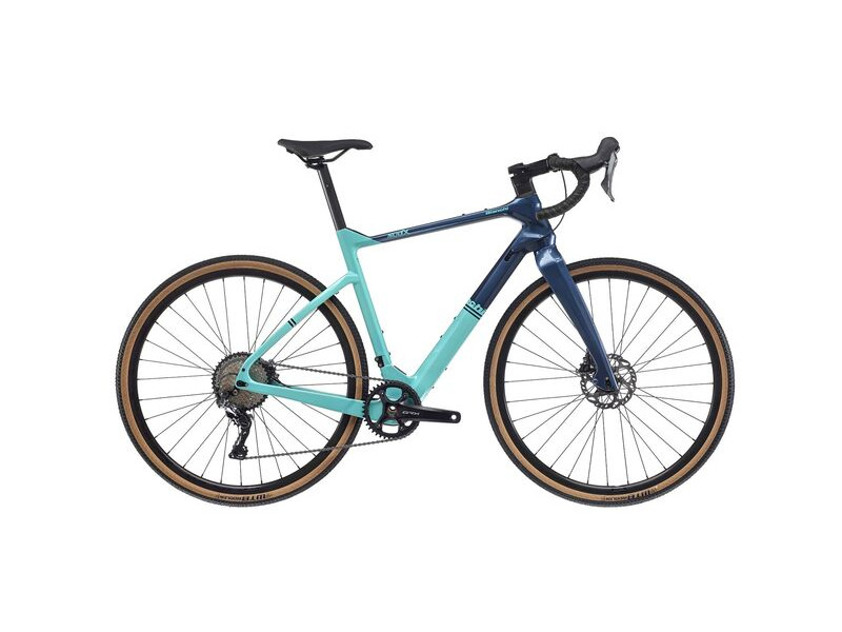

The Bianchi Arcadex GRX 810 is a high-spec edition of Bianchi’s original carbon gravel disruptor. While the newer "Next Gen" Arcadex focuses on integration and storage, this version is beloved for its raw power transfer and the legendary reliability of the Shimano GRX 800-series mechanical groupset.
In Size Small (SM), the Arcadex is particularly nimble. Its compact rear triangle and beefy carbon fork make it feel incredibly reactive when climbing out of the saddle or weaving through technical singletrack. The Celeste / Blue Note (GX) finish is a fan favourite, pairing the classic Bianchi turquoise with deep navy accents that highlight the frame’s unique, angular architecture.
Frameset & Geometry
Frame: Arcadex Carbon, 1.5" Headset, 12x142mm Thru-Axle, Flat Mount Disc, PressFit 86.5 BB.
Fork: Bianchi Full Carbon Disc, 1.5" Tapered, 12x100mm Thru-Axle.
Design: Features a "boxy" aero-inspired design that provides massive lateral stiffness for high-speed gravel efforts.
Colour: Celeste / Blue Note Glossy
Drivetrain & Brakes
Shifters: Shimano GRX 810 ST-RX810, 1x11-Speed
Rear Derailleur: Shimano GRX 812 RD-RX812
Crankset: Shimano GRX 810 FC-RX810, 40T Single Chainring.
Bottom Bracket: Shimano SM-BB72-41B, PressFit.
Cassette: Shimano SLX CS-M7000, 11-42T.
Brakes: Shimano GRX 810 Hydraulic Disc.
Rotors: Shimano SM-RT70 CenterLock, 160mm (Front & Rear).
Wheels & Tires
Wheelset: AlexRims GD24 Disc, 21mm internal width, Tubeless Ready.
Hubs: Shimano RS470 CenterLock.
Tires: WTB Riddler Race, 700x37c
Max Tire Clearance: 700x42mm
Key Technologies
GRX 810 Ergonomics: The 810-series levers feature a textured "anti-slip" coating and a higher brake pivot point, allowing you to achieve massive braking power even when riding with your hands on top of the hoods.
Mudguard & Rack Compatibility: Despite its racing silhouette, the Arcadex has hidden eyelets, making it a viable option for fast, foul-weather commuting or lightweight credit-card bikepacking.
Asymmetric Chainstays: The drive-side chainstay is dropped to prevent "chain suck" and allow for the clearance of 42mm tires without lengthening the wheelbase, keeping the handling snappy.
Carbon Fiber layup: Optimized for "Gravel Racing," meaning it’s stiffer and more vibration-absorbent than an alloy frame, reducing hand numbing on long washboard roads.
