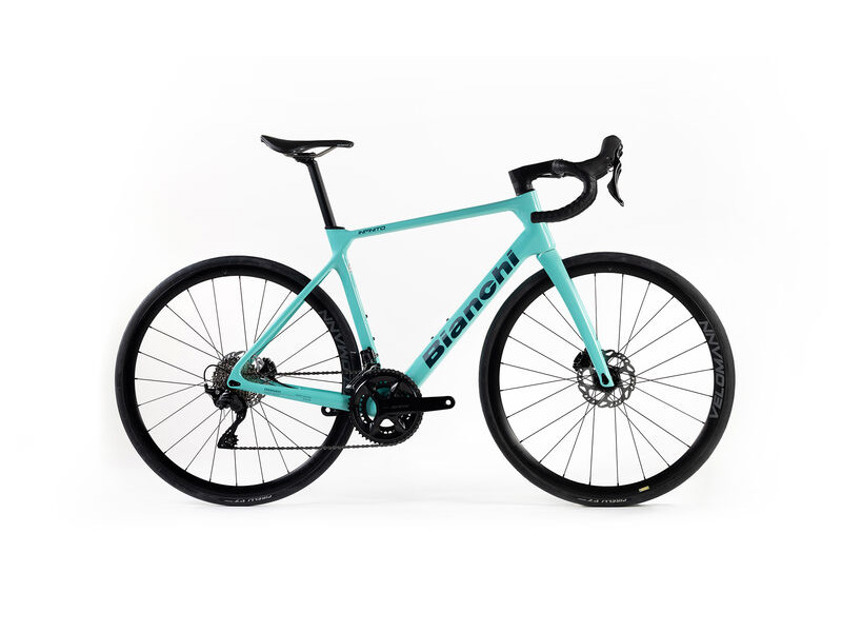

The Bianchi Infinito 105 12sp is the evolution of Bianchi’s endurance platform, specifically tailored for the rider who wants a modern, "all-road" capable machine without the price tag of electronic shifting or the CV vibration-damping carbon.
This build utilizes the Shimano 105 R7100 12-speed mechanical groupset. It shares the same radical frame redesign as the higher-end Ultegra models, including full internal cable routing and a significantly increased tire clearance. This model is perfect for the "century rider"—someone who spends 4–6 hours in the saddle and needs a bike that is stable, comfortable, and easy to maintain thanks to its mechanical components.
Frameset & Geometry
Frame: Infinito Carbon, Full Internal Cable Routing (ICR), PressFit 86.5x41mm BB, 12x142mm Thru-Axle
Fork: Full Carbon ICR, 1.5" Tapered, 12x100mm Thru-Axle
Handlebar: Velomann Compact, Alloy 6061, 31.8mm
Stem: Velomann AICR Alloy
Seatpost: Infinito Full Carbon, D-Shape profile (Designed for vertical compliance)
Saddle: Velomann Mitora 139
Drivetrain & Brakes
Shifters: Shimano 105 ST-R7120, 2x12-Speed (Mechanical/Hydraulic)
Front Derailleur: Shimano 105 FD-R7100
Rear Derailleur: Shimano 105 RD-R7100, 12-Speed
Crankset: Shimano 105 FC-R7100, 50/34T
Bottom Bracket: Shimano SM-BB72-41B, PressFit
Cassette: Shimano 105 CS-R7101, 11-34T
Chain: Shimano CN-M7100
Brakes: Shimano 105 BR-R7170 Hydraulic Disc
Rotors: Shimano SM-RT70 CenterLock, 160mm (Front & Rear)
Wheels & Tires
Wheelset: Velomann V30R Alloy, 30mm Profile, Tubeless Ready
Hubs: Velomann, CenterLock, 12mm Thru-Axle
Tires: Pirelli Cinturato™ Velo TLR, 700x32c
Max Tire Clearance: 32mm (Official) / ~34mm (Measured)
Key Technologies
Modern Endurance Geometry: The Infinito features a longer wheelbase and a taller head tube (approx. 20-30mm higher than a Sprint or Oltre), which places the rider in a more sustainable position, reducing pressure on the hands and lower back.
Integrated AICR System: Even with mechanical shifting, the Infinito hides the cables entirely. This not only looks much cleaner but prevents the cable housings from rubbing against the frame's paint over time.
All-Road Capability: By shipping with 32mm Pirelli tires, this bike is ready for "light gravel," canal paths, or severely broken city streets right out of the box.
D-Shape Carbon Seatpost: The flat-back profile of the seatpost allows it to act as a leaf spring, significantly absorbing the "buzz" from the road before it reaches the saddle.
Shimano 105 Mechanical (12-speed): Offers the same gear range as the electronic version but with the tactile "click" of a shifter and the peace of mind that you never have to worry about charging a battery.
