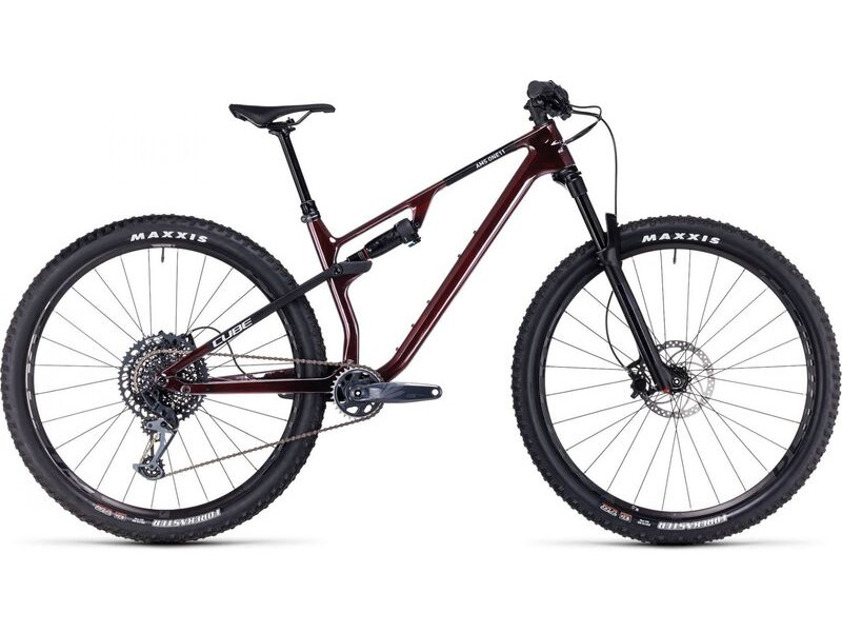

When we set out to build the ultimate lightweight trail bike we began with our best-in-class C:68X® carbon lay-up. With slender tube profiles fastidious design and exhaustive testing we finished with a frame that weighs around 1600g. Designed around 444mm chainstays with clearance to comfortably run 2.4in tyres there's even an Acros angle adjustment insert to allow fine-tuning of the head angle. 110mm of rear-wheel travel and 120mm up front - combined with the agility of a super-responsive frame - is a potent combination for dissecting even the trickiest sections of trail. Raise your game. Ride AMS ONE11 C:68X.
- Frame: C:68X® Monocoque Advanced Twin Mold Technology FSP 4-Link Boost 148 UDHTM
- Fork: RockShox Recon Gold RL Air Tapered 15x110mm 120mm
- Shock: RockShox Deluxe Select+ 190x42.5mm
- Shock hardware: Front: 26x8mm Rear: 30x8mm
- Headset: ACROS Integrated Top 1 1/8" Bottom 1 1/2" Fiber Inserts for 0.6deg. Angle Adjustment
- Stem: Newmen Evolution SL 318.4 31.8mm
- Handlebar: Newmen Evolution 318.20 760mm
- Grips: SDG Thrice
- Rear derailleur: Sram GX EagleTM 12-Speed
- Shifters: Sram GX EagleTM Trigger
- Brake system: Magura MT Thirty Front/Rear 2-Piston Hydr. Disc Brake (180/180)
- Crankset: Sram GX EagleTM Boost DUB 30T
- Crankset chainring sizes: 30T
- Cassette: Sram XG-1275 EagleTM 10-52T
- Number of gears: 12
- Chain: Sram SX EagleTM
- Wheelset (system wheels): Fulcrum Red 77 28/28 Spokes 15x110mm/12x148mm Tubeless Ready
- Tires: Maxxis Forekaster EXO Tubeless Ready 2.35
- Saddle: Natural Fit Nuance
- Seat post: CUBE Dropper Post Handlebar Lever Internal Cable Routing 30.9mm
- Seat post = dropper Yes/No: Y
- Seat post clamp: CUBE Screwlock 34.9mm
