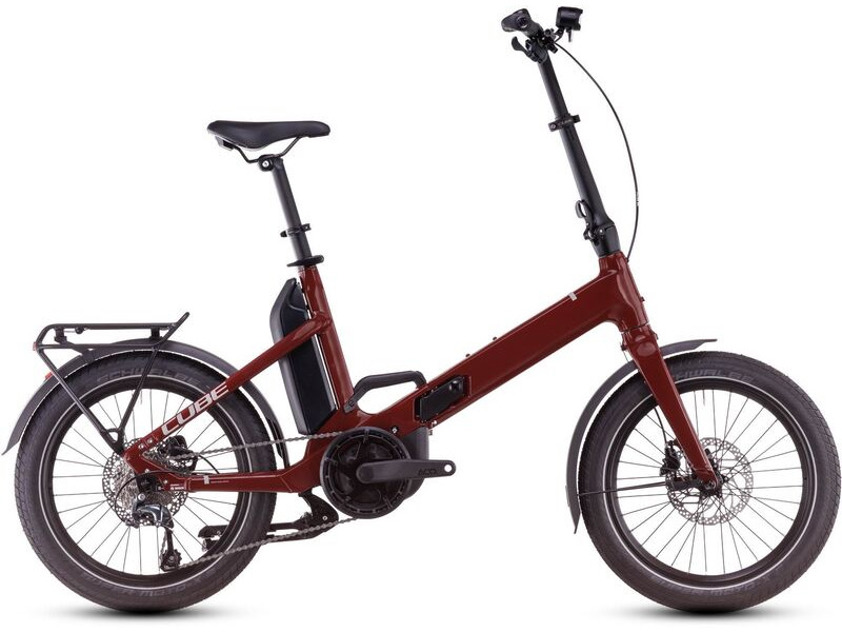

The Cube Fold Hybrid 500 is a masterclass in portable urban engineering. While many folding e-bikes compromise on power or ride quality, this model uses a full-sized Bosch Active Line Plus mid-drive motor and a 500Wh battery to ensure it rides like a "real" bike while maintaining a tiny storage footprint.
Its One Size Concept is a key highlight: the telescoping seatpost and adjustable stem allow it to be shared easily between riders of vastly different heights (approx. 5'2" to 6'2"). With 20-inch wheels and high-volume tires, it remains nimble enough for city traffic but stable enough for longer weekend rides. The integrated carry handle and clever folding hinge make it a breeze to take onto a train or store in a hallway.
Drive System & Control
Motor: Bosch Active Line Plus (Gen 3), 50Nm torque, 250W
Battery: Bosch PowerPack 500Wh, externally mounted for easy removal
Display: Bosch Purion, minimalist backlit LCD
Charger: Bosch 2A Compact Charger
Assistance: 4 Levels (Eco, Tour, Sport, Turbo) plus Walk Assist
Frameset & Folding Mechanics
Frame: Aluminium Superlite, Integrated Folding Technology, Carrying Handle
Folded Dimensions: Approx. 90cm x 60cm x 75cm
Fork: Aluminium Rigid Fork, 20"
Stem: Cube Folding Stem, adjustable length and height
Handlebar: CUBE Comfort Trail Bar, 680mm
Drivetrain & Brakes
Rear Derailleur: Shimano Tiagra RD-4700GS, 10-Speed
Shifters: Shimano Tiagra SL-4700, Rapidfire-Plus
Cassette: Shimano CS-HG500, 11-34T
Crankset: ACID Trekking Hybrid, 42T, with integrated Chainguard
Brakes: Shimano BR-MT200, Hydraulic Disc Brakes
Rotors: 180mm Front / 180mm Rear
Wheels & Components
Tires: Schwalbe Super Moto-X, Double Defense, 20" x 2.40"
Rims: CUBE EX30, 32H, Disc, Tubeless Ready
Seatpost: Satori Sorata telescoping (range: 280mm–440mm)
Pedals: CUBE Folding Pedal, Aluminium
Saddle: Natural Fit Sequence
Included Accessories
Lighting: ACID PRO-E 60 front / ACID Mudguard Rear Light
Mudguards: ACID 75
Kickstand: Two-leg kickstand (for stability when folded/loading)
Carrier: ACID 20" Semi-Integrated (RILink compatible)
Weight: Approx. 24.5 kg
