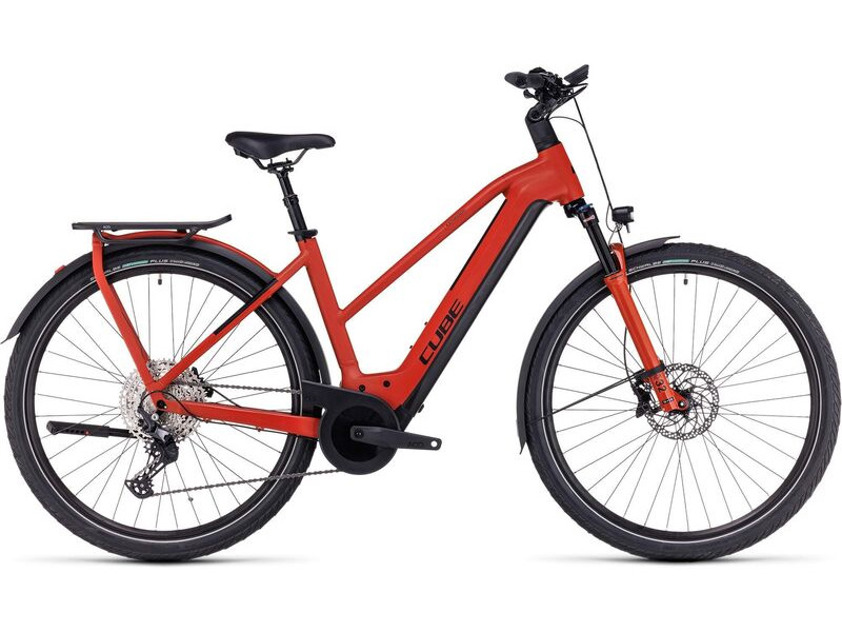

The Cube Kathmandu Hybrid EXC 750 Trapeze is a premium, high-capacity electric trekking bike designed for serious touring and long-distance commuting. The "Trapeze" frame style offers a compromise between a traditional diamond frame and a low-step, providing a lower standover height for easier mounting without sacrificing frame stiffness.
As an EXC (Exclusive) model, this bike sits a tier above the "Pro" and "ONE" versions. It features a high-performance 12-speed Shimano Deore drivetrain and powerful 4-piston hydraulic brakes, making it highly capable for hilly terrain and heavy luggage. It is powered by the top-tier Bosch Performance Line CX motor and a massive 750Wh battery for maximum range.
Drive System & Control
Motor: Bosch Performance Line CX Gen 4 (Smart System), 85Nm torque
Battery: Bosch PowerTube 750Wh, fully integrated
Display: Bosch Kiox 300 color display
Remote: Bosch LED Remote
Charger: Bosch 4A Smart Charger (Fast Charger)
Connectivity: Full Bosch Smart System integration via eBike Flow App
Frameset & Suspension
Frame: Aluminium Superlite, Trapeze (mid-step) design, Integrated Carrier 3.0
Fork: SR Suntour XCR32 LO-R Air, 100mm travel, Lockout
Headset: ACROS AZF-1035 with Integrated Cable Routing (ICR)
Stem: CUBE Comfort Stem Pro, 31.8mm, Adjustable
Drivetrain & Brakes
Rear Derailleur: Shimano Deore RD-M6100-SGS, ShadowPlus, 12-Speed
Shifters: Shimano Deore SL-M6100-IR, Direct Attach
Cassette: Shimano Deore CS-M6100, 10-51T (Wide Range)
Crankset: ACID E-Crank, 40T, 175mm
Brakes: Shimano BR-MT420 (Front 4-Piston) / BR-MT410 (Rear 2-Piston)
Rotors: 180mm Front / 180mm Rear
Wheels & Components
Tires: Schwalbe Energizer Plus, Green Guard, 28 x 2.15"
Rims: CUBE EX23, 36H, Disc, Tubeless Ready
Hubs: Shimano MT400/410 Series, Boost Spacing
Seatpost: CUBE Suspension Seatpost HD, 30.9mm
Saddle: Natural Fit Sequence Comfort
Included Accessories
Lighting: CUBE Shiny 50 Lux front / ACID Mudguard Rear Light PRO-E
Mudguards: ACID 65
Kickstand: ACID FM Pure
Carrier: Integrated Carrier 3.0 (MIK compatible)
Weight: Approx. 27.7 kg
