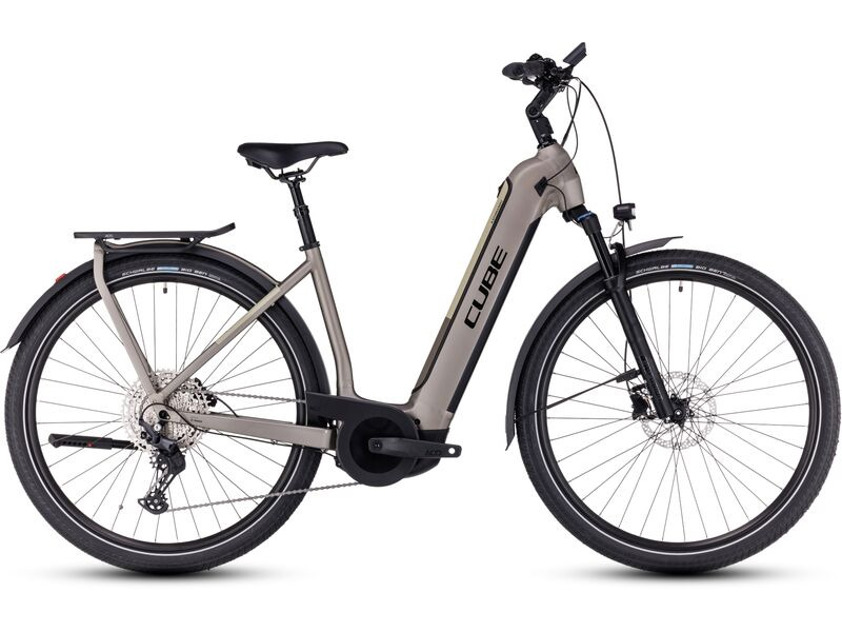

Designed for comfort, versatility and durability, the Kathmandu's frame - whether you choose the Men's version, the Trapeze or the Easy Entry - incorporates a high-capacity Bosch battery for the best possible range. Efficient Comfort Geometry works exactly the way you'd expect it to, meaning you can pedal in comfort for miles and miles. And the Integrated Carrier 3.0 is as strong as its predecessors, but even better integrated with the rear mudguard for an elegantly understated look that you'll love - and it's the perfect way to add accessories and carry whatever you need with you.
Frame
Frame
Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Full Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube (EE: Tapered Headtube)
Fork
X-Fusion MIG32 Air, Tapered, 15x110mm, 100mm, Lockout
E-bike System
Engine
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Battery
Bosch PowerTube 750
Display
Bosch Kiox 300
Drivertrain and brakes
Front brake
Shimano BR-MT200, Hydr. Disc Brake (180/180)
Rear brake
Shimano BR-MT200, Hydr. Disc Brake (180/180)
Rear derailleur
Shimano Deore RD-M5100-SGS, 11-Speed
Shifters
Shimano Deore SL-M5100, Rapidfire-Plus
Crankset
Acid Integrated Carrier 3.0, CUBE Adapter Compatible
Cassette
Shimano Deore CS-M5100, 11-51T
Chain
KMC X11
Cockpit
Headset
Acros M/Z: ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: ACROS AZX-1040, BlockLock 135°, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Handlebar
Cube Comfort Trail Bar, 700mm
Stem
Cube Comfort Stem Pro, 31.8mm, Adjustable
Handlebar tape/Grips
Acid Travel Comfort
Wheels
Rims
Cube EX23, 36H, Disc, Tubeless Ready
Front hub
Shimano HB-MT400-B, 15mm, Boost, Centerlock
Rear hub
Shimano FH-MT400-B, 12mm, Boost, Centerlock
Front tyre
Schwalbe Big Ben, Performance, K-Guard, 55-622
Other parts
Saddle
Natural Fit Sequence Comfort
Seatpost
Cube Suspension Seatpost HD, 30.9mm
Seatpost clamp
Cube Screwlock Semi Integrated w/ Hidden Tool, 36mm (EE: Screwlock Semi Integrated, 36mm)
Pedals
Acid PP Trekking
Front light
Cube Shiny 50 Lux, 12V, DC
Rear light
Acid Mudguard Rear Light PRO-E, 12V, DC
Standard
Acid FM Pure Kickstand
Mudguards
Acid 65 Integrated Carrier 3.0
Bell
Cube
Carrier
Acid Integrated Carrier 3.0, CUBE Adapter Compatible
