Alltrack 4 / Medium

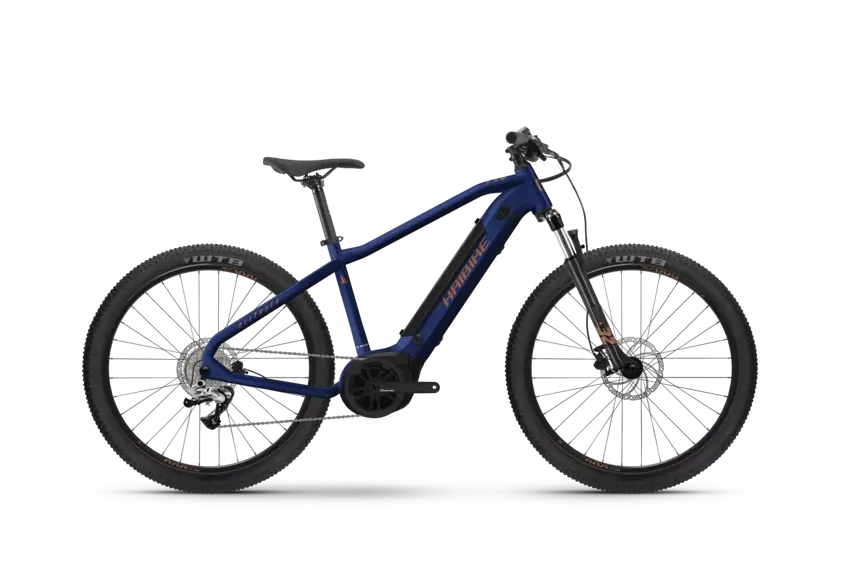

The Haibike AllTrack 4 is an entry-level electric hardtail mountain bike designed to provide a reliable introduction to off-road riding. It features a balanced geometry that excels on forest paths, light trails, and gravel tracks, while remaining efficient enough for daily commuting on paved surfaces.

Built around a robust aluminum frame, this model utilizes the Bosch Performance Line Smart System, which offers a natural-feeling assist with 75Nm of torque—plenty of power for tackling steep inclines without losing control. The bike follows Haibike's "size-dependent" wheel philosophy: smaller frame sizes (S) use agile 27.5-inch wheels, while larger frames (M–XL) utilize 29-inch wheels for better rollover capability and stability. With 120mm of front suspension and dependable hydraulic disc brakes, the AllTrack 4 is a sturdy all-rounder for riders seeking both adventure and utility.

Drive System & Control

• Motor: Bosch Performance Line Smart System, 250W, 75Nm torque, 25km/h

• Battery: Bosch PowerTube 500Wh, integrated into the downtube

• Display: Bosch LED Remote (Smart System)

• Charger: Bosch Standard Charger 4Ah

Frameset & Suspension

• Frame: Aluminium 6061, Hardtail, Thru-axle M12 (1.00) x 148mm, Post Mount disc brake

• Fork: SR Suntour XCM32 Boost DS, Steel spring/oil, Travel: 120mm, 15 x 110mm thru-axle Boost

• Headset: A-Head Tapered, Feimin ball bearing

Drivetrain & Brakes

• Rear Derailleur: Shimano Alivio M3100 (or Shimano Cues U3020 depending on regional batch), 9-speed

• Shifters: Shimano Alivio M3100 / Cues U4000, Rapidfire Plus

• Cassette: Shimano HG200, 11-36 teeth

• Chain: KMC e9S

• Crankset: Steel, 38 teeth, Miranda No.7

• Brakes: Alhonga HT472, Hydraulic Disc Brakes

• Rotors: Alhonga DXR1806, 180mm (Front and Rear)

Wheels & Components

• Rims: Schürmann Yak25, Eyed, Double-walled, Aluminium
•

• Tires: WTB Ranger Comp, 55-622 (29" x 2.3")

• Handlebar: XLC 720mm, 31.8mm bore

• Stem: XLC A-Head, 31.8mm

• Grips: XLC MTB Grips

• Saddle: XLC MTB / DDK

• Seatpost: XLC Aluminium, Patent, 31.6mm

• Pedals: Aluminium Freeride pedal with reflector

• Max Permissible Weight: 120 kg (Rider, bike, and gear combined)
