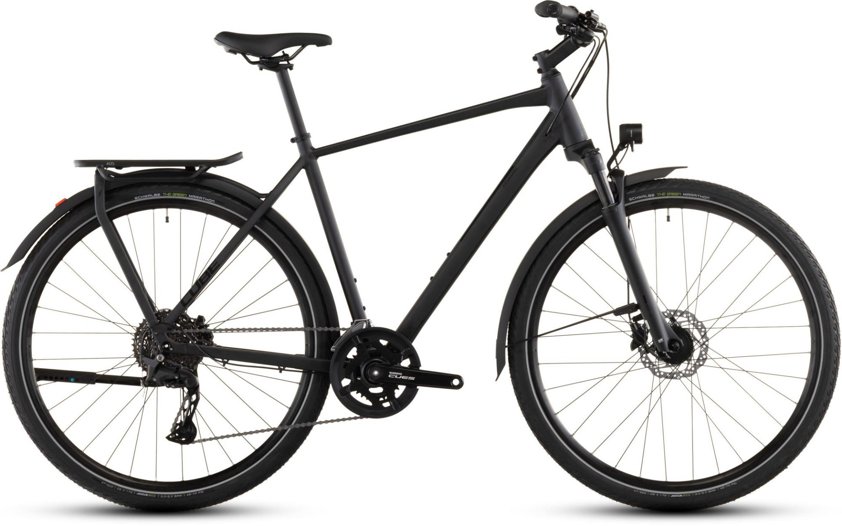

CUBE's design team ensured the Kathmandu Pro has everything you need and nothing that you don't. From the elegant simplicity of the Integrated Carrier 3.0 to the full-length mudguards, front and rear lights and CUBE FM kickstand, it's the practical everyday companion that's rugged enough to take on longer trips, too. A Suntour air suspension fork makes even the roughest roads smoother, for a more comfortable ride. Schwalbe Green Marathon tyres use recycled rubber, to reduce their environmental impact. Shimano's Cues 2x10 gears give you the range you need to make light work of any route. And Shimano hydraulic disc brakes ensure you can always stop safely, no matter what you're carrying or what the weather is throwing your way. Urban jungle or distant horizon, the Kathmandu Pro has your back.
Attention to detail is a CUBE obsession. That's why, with the Kathmandu's Integrated Carrier 3.0, we designed it to work seamlessly with our ACID mudguard. We've fitted a flat mount for the rear disc brake – it also accommodates the kickstand – and used Smooth Welding to give the frame joints a tidy, organic appearance. But it's not all about looks. We also equipped the rear end with a thru-axle and added a tapered head tube for improved rigidity and steering precision, even when fully laden. With Internal Cable Routing to complement the frame's clean looks, we reckon we've thought of everything. Just don't forget your toothbrush.
Frame
Frame
Aluminium Superlite, Trekking Comfort, Integrated Carrier 3.0, Double Butted
Fork
SR Suntour NCX32 D LO Air, 63mm
Drivertrain and brakes
Front brake
Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (160)
Rear brake
Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (160)
Rear derailleur
Shimano Cues RD-U6020-SGS, 10-Speed
Front derailleur
Shimano Cues FD-U6010, Top Swing, 31.8mm
Shifters
Shimano Cues SL-U6000, Rapidfire-Plus
Crankset
Shimano Cues FC-U4010, 46x30T, Chainguard
Cassette
Shimano Cues CS-LG400, 11-39T
Chain
KMC xGlide
Groupset
Shimano Cues
Cockpit
Headset
VP Integrated, Top 1 1/8", Bottom 1 1/2"
Handlebar
Cube Comfort Trail Bar, 680mm
Stem
Cube Performance Stem SLX, 31.8mm
Handlebar tape/Grips
Acid Travel Comfort
Wheels
Rims
Acid EX25, 32H, Disc, Tubeless Ready
Front hub
Shimano DH-3D37, Hub Dynamo, QR, Centerlock
Rear hub
Shimano FH-TC500-HM, 12mm Through Axle, Centerlock
Front tyre
Schwalbe Marathon Green, Perf, 47-622
Rear tyre
Schwalbe Marathon Green, Perf, 47-622
Other parts
Saddle
Acid Sequence Pro 170
Seatpost
Cube Performance Post, 27.2mm
Seatpost clamp
Cube Seatpost clamp
Pedals
Acid PP Trekking
Rear light
Acid Mudguard Rear Light PRO-D, 6V, AC
Standard
Acid FM Pure Kickstand
Mudguards
Acid 56 Integrated Carrier 3.0
Bell
Reich Cycle Bells Ringsound
Carrier
Acid Integrated Carrier 3.0, CUBE Adapter Compatible
