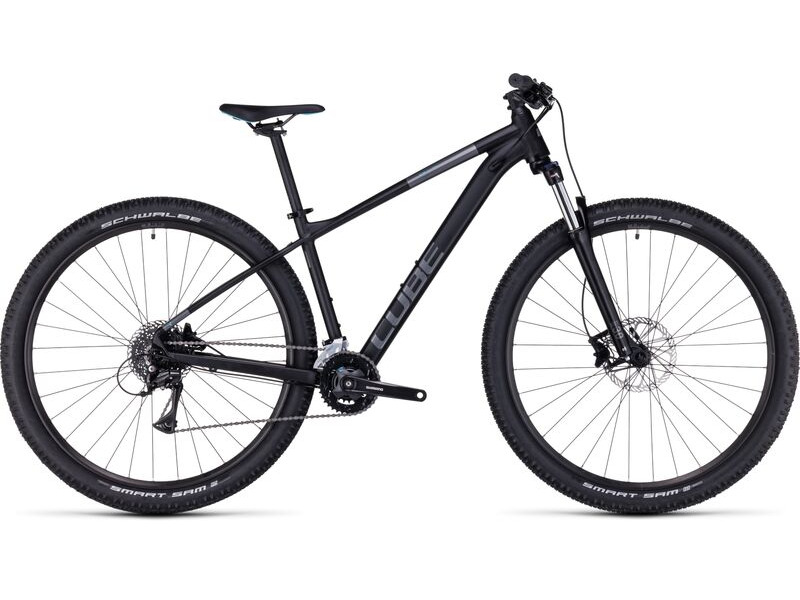

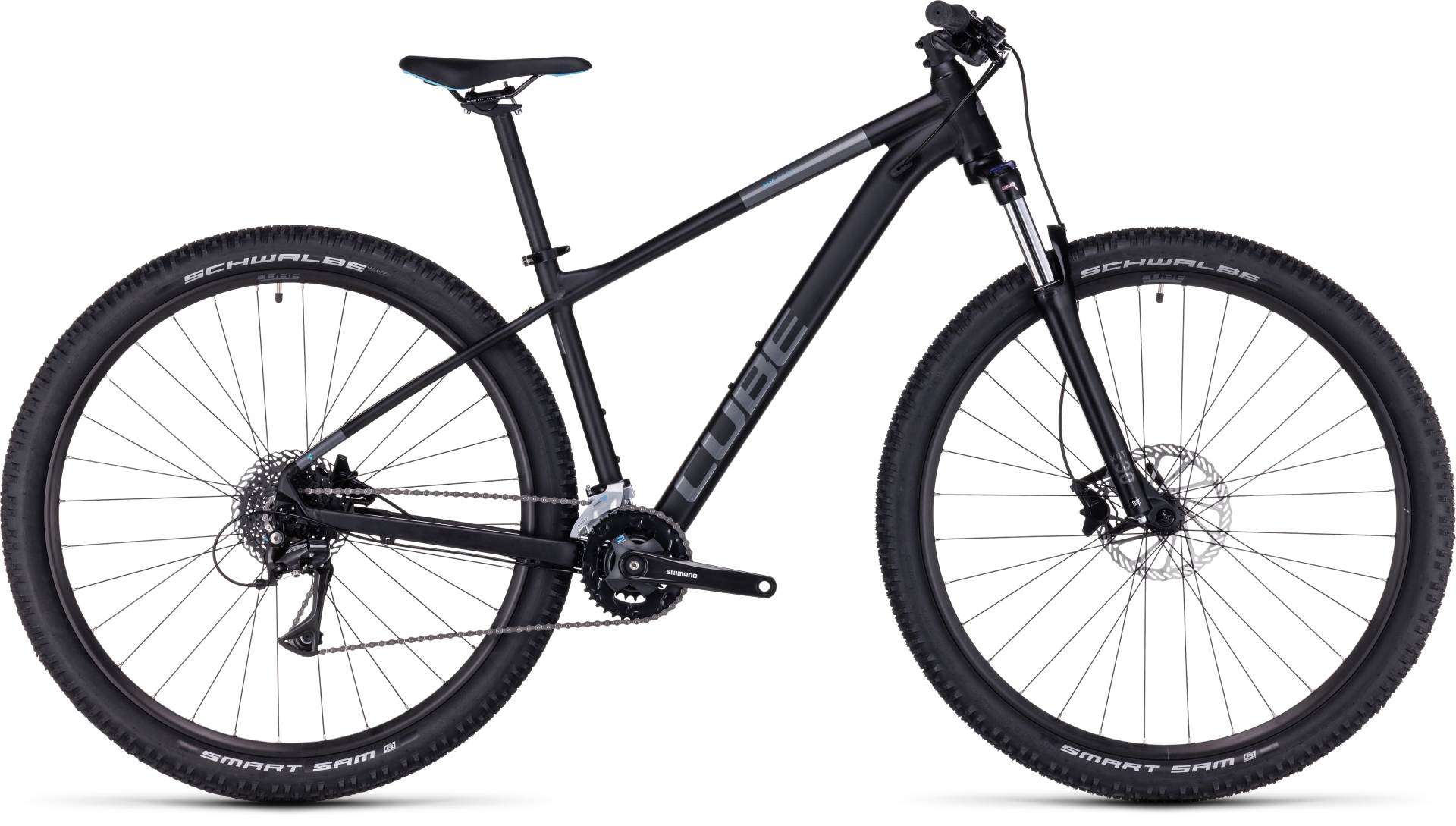

Cube Aim Race
For cycle to work click here
Options | Extra Small black'n'azure In Store Now Small black'n'azure In Stock (Warehouse) Medium black'n'azure CURRENTLY UNAVAILABLE Large black'n'azure CURRENTLY UNAVAILABLE Extra Large black'n'azure CURRENTLY UNAVAILABLE XX Large black'n'azure CURRENTLY UNAVAILABLE |
---|---|
Style | Beauty is more than skin deep: the Aim's sleek looks are thanks to its Smooth Welded head tube and seat tube junctions. It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance. There's even a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for ACID mudguards and carrier. Updated geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres. Our SizeSplit system has an expanded range, too, so however tall you are there'll be an Aim that fits perfectly. |
Frame | Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount |
Forks | SR Suntour XCT Disc, 100mm, Lockout |
Rear Derailleur | Shimano RD-M3020, 8-Speed |
Front Derailleur | Shimano FD-M315, Top Swing, 31.8mm Clamp |
Shifters | Shimano SL-M315, Rapidfire-Plus |
Chainset | Shimano FC-M315, 36x22T, 170mm |
Bottom Bracket | Thun Paso-ML, 73mm BSA |
Chain | KMC Z8.3 |
Freewheel | Shimano CS-HG31, 11-34T |
Headset | CUBE FPH868, Semi-Integrated |
Stem | CUBE Peformance Stem Race, 31.8mm |
Handlebars | CUBE Rise Trail Bar, 680mm |
Rims | CUBE ZX20, 32H, Disc |
Front Hub | Shimano HB-TX505, QR, Centerlock |
Rear Hub | Shimano HB-TX505, QR, Centerlock |
Tyres | Schwalbe Smart Sam, Active, 2.25 |
Saddle | Natural Fit Venec Lite |
Seatpost | CUBE Performance Post, 27.2mm |
Pedals | ACID PP MTB |
Grips | ACID React |
Brakes | Clarks Clout 1, Hydr. Disc Brake PM/FM (180/160) |
Type | Hardtails |
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
