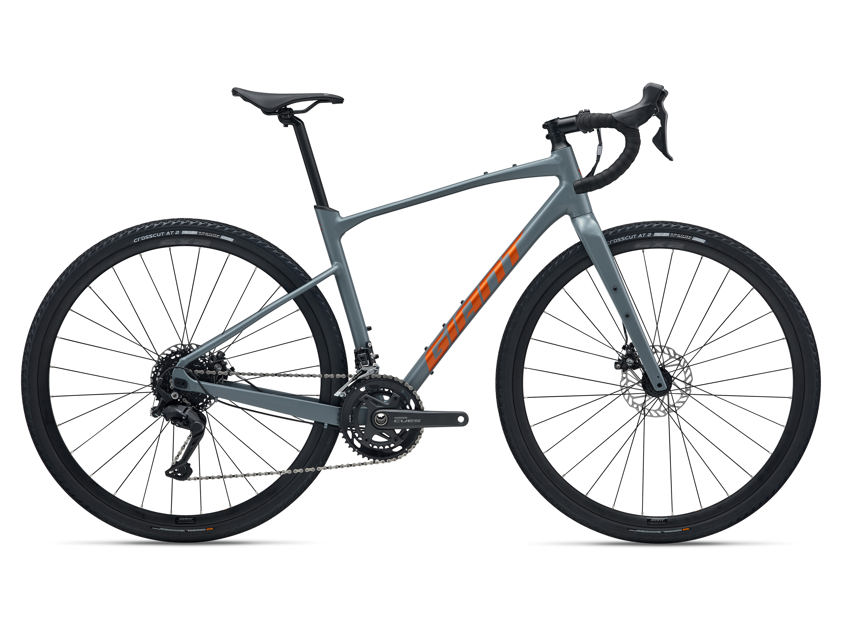

The Giant Revolt 2 is a highly capable aluminium gravel bike designed for riders who prioritize durability, versatility, and value. Built around a lightweight ALUXX-grade aluminium frame, the 2026 model features a refined geometry with a lower bottom bracket and longer reach to increase stability on unpredictable terrain. The inclusion of an Advanced-grade composite fork is a key performance feature, effectively dampening front-end vibrations and providing precise steering control.
Adaptability is at the core of the Revolt 2's design, highlighted by the Flip Chip dropout system. This allows riders to adjust the wheelbase by 10mm—choosing the "Short" position for agile, snappy handling or the "Long" position for improved stability and massive tire clearance of up to 53mm. Equipped with the rugged Shimano Cues 2x9 drivetrain and tubeless-ready wheels, this bike is equally prepared for high-speed gravel commutes, light touring, or exploring remote backroads.
Frameset & Geometry
Frame: ALUXX-Grade Aluminum, 12x142mm Thru-Axle, Disc, Flip Chip Dropout
Fork: Advanced-Grade Composite, Full-Composite OverDrive Steerer, 12mm Thru-Axle, Disc
Handlebar: Giant Contact XR Ergo-Control, 31.8mm
Stem: Giant Contact, 8-Degree
Seatpost: Giant D-Fuse Alloy, 14mm Offset (D-shaped profile for vertical compliance)
Saddle: Giant Grit
Colour: Ocean Storm (A deep, metallic blue-grey)
Drivetrain & Brakes
Shifters: Shimano Cues U3030, 2x9-Speed
Front Derailleur: Shimano Cues U6030
Rear Derailleur: Shimano Cues U4020
Crankset: Shimano FC-U6030-2, 32/46T
Cassette: Shimano CS-LG300, 11-36T (9-Speed)
Chain: KMC X11
Brakes: Shimano BR-RS305 Mechanical Disc
Brake Levers: Shimano Cues U3030
Wheels & Tires
Wheelset: Giant S-X2 Disc Wheelset, Alloy, 25mm inner width
Hubs: Giant Alloy, 12mm Thru-Axle
Spokes: Stainless Steel
Tires: Giant CrossCut AT 2, 700x38c, Tubeless
Max Tire Clearance: 45mm (Short position) / 53mm (Long position)
Key Technologies
ALUXX Aluminum: Performance-grade 6061 alloy produces a strong, lightweight frameset for agile handling.
Flip Chip Dropout: Allows for quick geometry adjustments to prioritize either responsiveness or stability.
D-Fuse Technology: Absorbs road shocks and vibrations through uniquely shaped components, reducing fatigue on long rides.
OverDrive: Giant’s original oversized fork steerer technology for precise front-end steering performance.
