revolt advanced 2

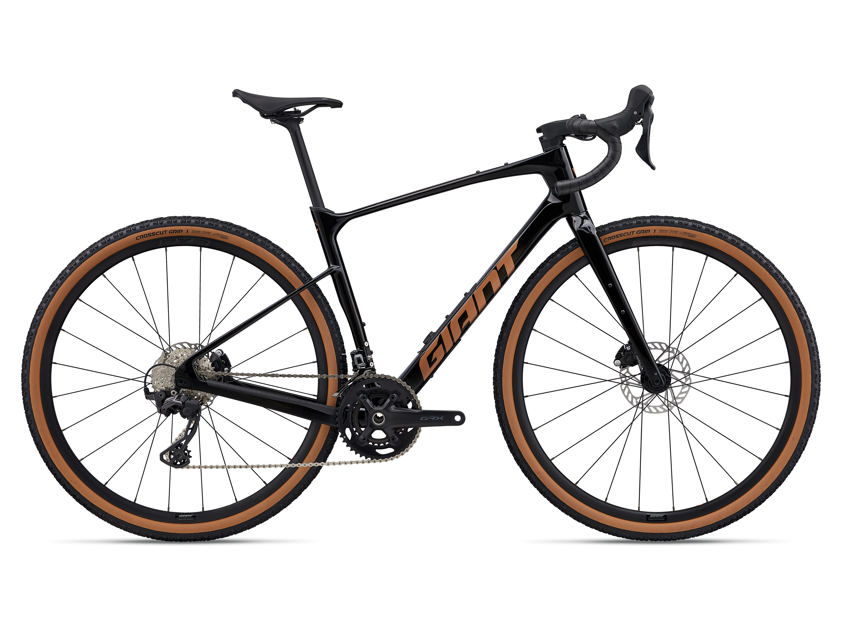

The Giant Revolt Advanced 2 is a highly versatile carbon gravel bike that strikes an ideal balance between speed, comfort, and rugged capability. For 2026, it features an Advanced-grade composite frame and fork that have been lightened by over 160g compared to the previous model. This updated version introduces integrated down tube storage, allowing you to carry tools, tubes, and snacks securely within the frame to maintain a clean aesthetic and improve the bike's center of gravity.

The Revolt is defined by its adaptability, highlighted by the Flip Chip dropout at the rear. This hardware allows you to adjust the wheelbase: the "Short" setting provides quick, agile handling for racing, while the "Long" setting adds stability for high-speed descents and increases tire clearance up to 53mm. Combined with D-Fuse technology in the handlebars and seatpost—engineered to flex and absorb road chatter—the Revolt Advanced 2 ensures a smooth ride over harsh surfaces while remaining laterally stiff for efficient climbing and sprinting.

Frameset & Geometry

• Frame: Advanced-Grade Composite, 12x142mm Thru-Axle, Disc, Flip Chip Dropout, Integrated Down Tube Storage

• Fork: Advanced-Grade Composite, Full-Composite OverDrive Steerer, 12mm Thru-Axle, Disc

• Handlebar: Giant Contact XR D-Fuse, 31.8mm

• Stem: Giant Contact AeroLight, -10 Degree (Internal Cable Routing)

• Seatpost: Giant D-Fuse, Composite, 14mm Offset (Swappable for a 30.9mm round or dropper post)

• Saddle: Giant Grit

• Color: Carbon Smoke (Gloss Carbon/Black)

Drivetrain & Brakes

• Shifters: Shimano GRX RX-610, 2x12-speed

• Front Derailleur: Shimano GRX RX-820

• Rear Derailleur: Shimano GRX RX-820

• Crankset: Shimano FC-RX610-2, 30/46T

• Cassette: Shimano CS-HG710, 11-36T (12-speed)

• Chain: KMC X12L-1

• Brakes: Shimano BR-RX410 Hydraulic Disc

• Brake Levers: Shimano GRX RX-610 Hydraulic

Wheels & Tires

• Wheelset: Giant P-X2 Disc Wheelset, Alloy, Tubeless Ready

• Hubs: Giant Alloy, 12mm Thru-Axle

• Spokes: Sapim

• Tires: Giant Crosscut Grip, 700x45c, Tubeless

• Max Tire Clearance: 45mm (Short position) / 53mm (Long position)

Key Technologies

• Advanced Composite: High-performance grade raw carbon material woven in Giant’s own factory for a superior stiffness-to-weight ratio.

• Flip Chip Dropout: Allows riders to quickly adjust geometry and tire clearance to suit terrain and riding style.

• D-Fuse Technology: Proprietary D-shaped components that damp vibrations for a smoother, more comfortable ride on rough surfaces.

• OverDrive: Giant’s original oversized fork steerer tube technology for precise front-end steering and stiffness.
