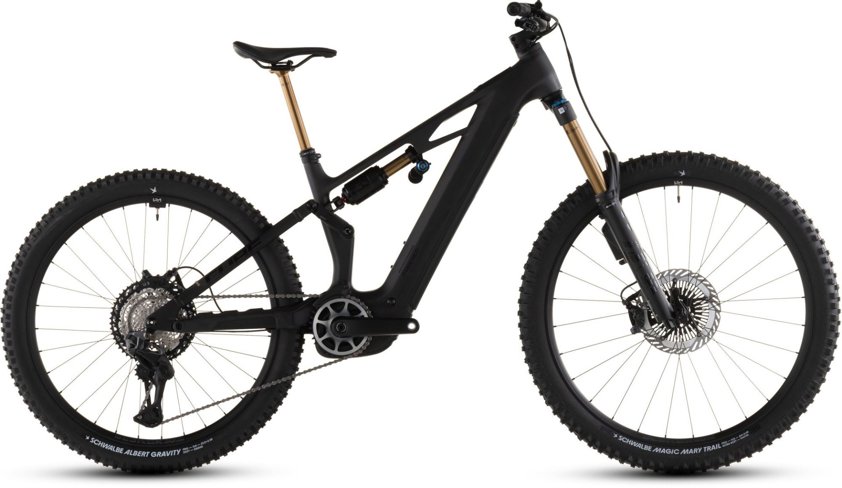

The Stereo Hybrid ONE77 HPC frame – with 170mm travel front and rear and a mullet wheel setup with 29in front and 27.5in rear – is all you need for big days out on big mountain trails. But, as with all CUBE designs, the devil is in the detail. So, for example, we added Integrated Cable Routing for super-clean looks, and then threw in an angle-adjustable headset so that you can tweak the handling to your taste. The 800Wh PowerTube battery sits unobtrusively in the carbon down tube, just above the Bosch CX drive. A UDH dropout on the aluminium rear triangle is tough and future-proof, and we also added a Direct Mount chain guide to keep you driving forwards even when the going gets rough.
CUBE Actionteam bikes are a breed apart, and the Stereo Hybrid ONE77 HPC AT is no exception. From its stunning carbon'n'gold livery to the mullet wheel set-up, CUBE carbon frame tech, Bosch drive with 800Wh battery and Shimano XT ABS Pro hydraulic disc brakes, it's ready for some serious mountain action.
Drive System & Control
Motor: Bosch Drive Unit Performance Line CX Generation 5, 85Nm (Tunable to 100Nm), 250W
Battery: Bosch PowerTube 800Wh, fully integrated
Display: Bosch Kiox 400C
Remote: Bosch Mini Remote (Wireless Bluetooth)
Charger: Bosch 4A Smart Charger
Safety Tech: Bosch ABS Pro (High-performance trail anti-lock braking)
Frameset & Suspension
Frame: C:62® Monocoque Carbon Front, 6061 T6 Aluminum Rear, 170mm Travel, UDH™ Ready, Boost 148, Advanced Internal Cable Routing
Fork: Fox 38 Float Factory GRIPX2, Kashima Coated, E-Bike Optimized, 170mm travel
Rear Shock: Fox Float X2 Factory, 230x65mm, Adjustable HSC/LSC/HSR/LSR w/ 2-Pos. Lever
Headset: ACROS AZF-675 with Angle Adjustment inserts (Slack/Moderate settings)
Stem: CUBE Performance Stem E-MTB 35, FPI-Link
Handlebar: Race Face ERA 35 (Carbon), 780mm
Grips: ACID Disrupt, Soft Compound
Drivetrain & Brakes
Rear Derailleur: Shimano XT Di2 RD-M8260-SGS, 12-Speed, Electronic Shifting
Shifters: Shimano XT Di2 SW-M8250-IR, Direct Attach
Cassette: Shimano XT CS-M8100, 10-51T
Chain: Shimano XT CN-M8100
Crankset: ACID MTB Hybrid Carbon, 36T
Chain Guide: Reverse Flip-Guide E-Chain Guide, Direct Mount
Brakes: Shimano XT BR-M8220, 4-Piston Hydraulic Disc Brakes
Rotors: 203mm (Front) / 203mm (Rear)
Wheels & Components
Wheelset: Newmen Beskar 30 base/strong, 28/32 Spokes, Tubeless Ready
Tires (Mullet):
Front: Schwalbe Magic Mary Trail Pro, Addix Ultrasoft, 29 x 2.5"
Rear: Schwalbe Albert Gravity Pro, Addix Soft, 27.5 x 2.5"
Saddle: ACID Venec EMTB Trail 140
Seatpost: Fox Transfer Factory Dropper, Kashima Coated, 31.6mm
Weight: Approx. 24.7 kg
