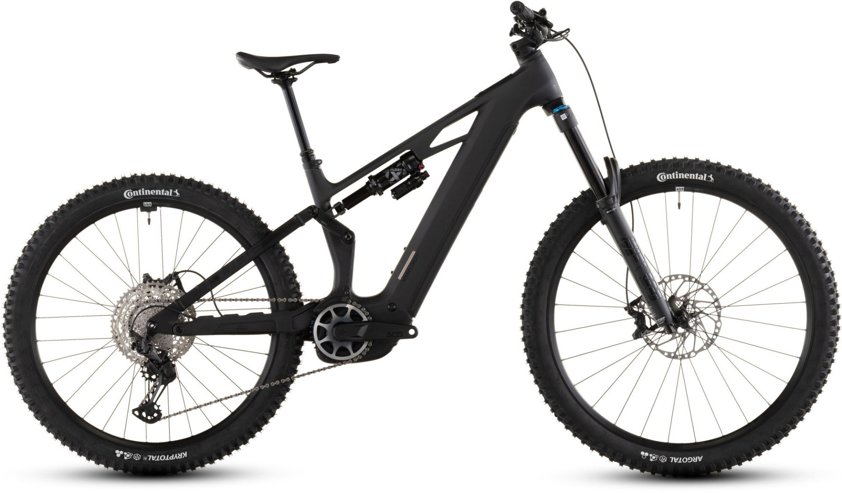

Stereo Hybrid ONE77 HPC SLX 800

The Stereo Hybrid ONE77 HPC frame – with 170mm travel front and rear and a mullet wheel setup with 29in front and 27.5in rear – is all you need for big days out on big mountain trails. But, as with all CUBE designs, the devil is in the detail. So, for example, we added Integrated Cable Routing for super-clean looks, and then threw in an angle-adjustable headset so that you can tweak the handling to your taste. The 800Wh PowerTube battery sits unobtrusively in the carbon down tube, just above the Bosch CX drive. A UDH dropout on the aluminium rear triangle is tough and future-proof, and we also added a Direct Mount chain guide to keep you driving forwards even when the going gets rough.

Drive System & Control

• Motor: Bosch Drive Unit Performance Line CX Generation 5, 85Nm (Tunable to 100Nm via app)

• Battery: Bosch PowerTube 800Wh, fully integrated

• Display: Bosch Kiox 400C

• Remote: Bosch Mini Remote (Wireless Bluetooth)

• Charger: Bosch 4A Smart Charger

• Connectivity: Bosch eBike Flow App (GPS Tracking, eBike Lock, Custom Modes)

Frameset & Suspension

• Frame: C:62® Monocoque Advanced Twin Mold Carbon Front, 6061 T6 Aluminum Rear, 170mm Travel, UDH™ Ready, Boost 148, Advanced Internal Cable Routing

• Fork: Fox 38 Float Rhythm GRIP, Tapered, 15x110mm, E-Bike Optimized, 170mm travel

• Rear Shock: Fox Float X Performance, 230x65mm, Adjustable LSR w/ 2-Pos. Lever

• Headset: ACROS AZF-675, ICR, with Fibre Inserts for Angle Adjustment

• Stem: CUBE Performance Stem E-MTB 35, FPI-Link

• Handlebar: CUBE Rise Trail Bar 35, 780mm

Drivetrain & Brakes

• Rear Derailleur: Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed

• Shifters: Shimano Deore SL-M6100, Rapidfire-Plus

• Cassette: Shimano Deore CS-M6100, 10-51T

• Chain: KMC e12

• Crankset: ACID MTB Hybrid Pro, 36T (Length: 165mm)

• Chain Guide: Reverse Flip-Guide E-Chain Guide, Direct Mount

• Brakes: Shimano XT BR-M8220, 4-Piston Hydraulic Disc Brakes

• Rotors: 203mm (Front) / 203mm (Rear)

Wheels & Components

• Wheelset: Newmen Performance 30 base/strong, 28/32 Spokes, Tubeless Ready

• Tires (Mullet):

  • Front: Continental Argotal, Enduro Soft, 29 x 2.4"

  • Rear: Continental Kryptotal Rear, Downhill Soft, 27.5 x 2.4"

• Saddle: ACID Venec EMTB Trail 140

• Seatpost: CUBE Dropper Post, Handlebar Lever, Internal Routing, 31.6mm

• Weight: Approx. 24.7 kg
