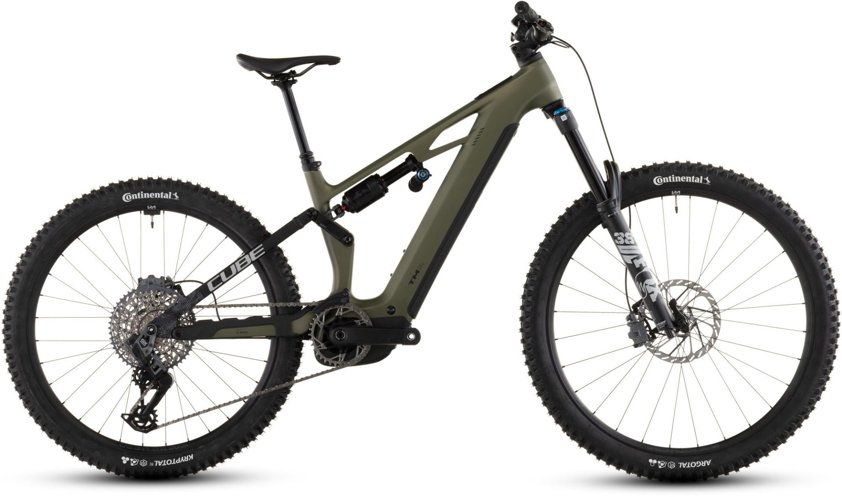

The Stereo Hybrid ONE77 HPC frame – with 170mm travel front and rear and a mullet wheel setup with 29in front and 27.5in rear – is all you need for big days out on big mountain trails. But, as with all CUBE designs, the devil is in the detail. So, for example, we added Integrated Cable Routing for super-clean looks, and then threw in an angle-adjustable headset so that you can tweak the handling to your taste. The 800Wh PowerTube battery sits unobtrusively in the carbon down tube, just above the Bosch CX drive. A UDH dropout on the aluminium rear triangle is tough and future-proof, and we also added a Direct Mount chain guide to keep you driving forwards even when the going gets rough.
Drive System & Control
Motor: Bosch Drive Unit Performance Line CX Generation 5, 85Nm (Tunable to 100Nm), 250W
Battery: Bosch PowerTube 800Wh, fully integrated
Display: Bosch Kiox 400C (integrated into the top tube)
Remote: Bosch Mini Remote (Wireless Bluetooth)
Charger: Bosch 4A Smart Charger
Connectivity: Bosch eBike Flow App (Custom riding modes, eMTB+ mode, and GPS tracking)
Frameset & Suspension
Frame: C:62® Monocoque Advanced Twin Mold Carbon Front, 6061 T6 Aluminum Rear, 170mm Travel, UDH™ Ready, Advanced Internal Cable Routing
Fork: Fox 38 Float Performance GRIP, 3-Position Micro-Adjust, E-Bike Optimized, 170mm travel
Rear Shock: Fox Float X2 Performance, 230x65mm, Adjustable HSC/LSC/LSR w/ 2-Pos.
Lever Headset: ACROS AZF-675, ICR, with Fiber Inserts for Angle Adjustment
Stem: CUBE Performance Stem E-MTB 35, FPI-Link
Handlebar: CUBE Rise Trail Bar 35, 780mm
Grips: ACID Disrupt, Soft Compound
Drivetrain & Brakes
Rear Derailleur: SRAM GX Eagle AXS™ Transmission, 12-Speed (Wireless Electronic Shifting)
Shifters: SRAM AXS™ Pod Controller
Cassette: SRAM XS-1275, 10-52T
Chain: SRAM GX Eagle™ Transmission
Crankset: ACID MTB Hybrid Carbon, 36T
Chain Guide: Reverse Flip-Guide E-Chain Guide, Direct Mount
Brakes: SRAM Maven Bronze, Hydraulic Disc Brakes (4-piston)
Rotors: 200mm (Front) / 200mm (Rear)
Wheels & Components
Wheelset: Newmen Beskar 30 base/strong, 28/32 Spokes, Tubeless Ready
Tires (Mullet):
Front: Continental Argotal, Enduro Soft, 29 x 2.4"
Rear: Continental Kryptotal Rear, Downhill Soft, 27.5 x 2.4"
Saddle: ACID Venec EMTB Trail 140
Seatpost: CUBE Dropper Post, Handlebar Lever, Internal Routing, 31.6mm
Weight: Approx. 24.6 kg
